Main engine: the main engine and the diesel engine are directly connected through a high elastic coupling with the large diameter rotor design of the third generation 5:6, and there is no increasing gear in the middle. The speed of the main engine is the same as that of the diesel engine and the transmission effect is achieved a higher rate, better reliability, longer life.
| Fixed speed screw air compressor | |||||
| Model | SLT-22F | ||||
| Capacity/Pressure(m3/min,/BAR) | 3.8/7 | 3.6/8 | 3.0/10 | 2.6/12 | |
| Motor | Power(KW) | 22 | |||
| Speed(r/min) | 2945 | ||||
| Starting way | Y-△ | ||||
| Volt(V) | 380 | ||||
| Motor safety grade | IP23/55 | ||||
| Motor isolation grade | F | ||||
| Electrical Supply | 380(415)V/50Hz/3Phase | ||||
| Outlet Temperature(ºC) | ≤ ambient Temperature+15ºC | ||||
| Driven way | Direct Driven | ||||
| Noise level at 1 meter | 65±3dB(A) | ||||
| Cooling method | Air cooling | ||||
| Oil content | 1~3 ppm | ||||
| Outlet Connection(Inch) | G 1 | ||||
| Dimension | Length(mm) | 1300 | |||
| Width(mm) | 850 | ||||
| Height(mm) | 1100 | ||||
| Weight(KG) | 465 | ||||

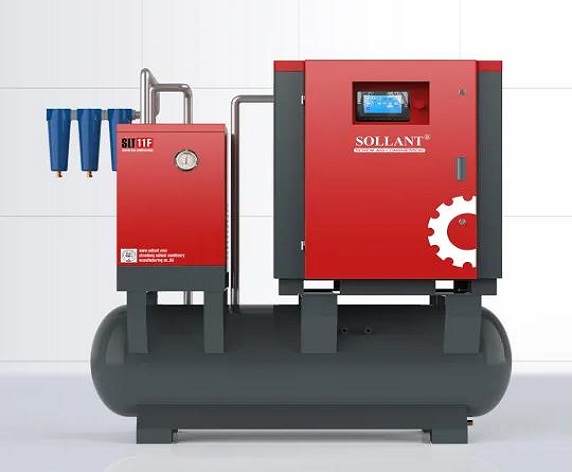

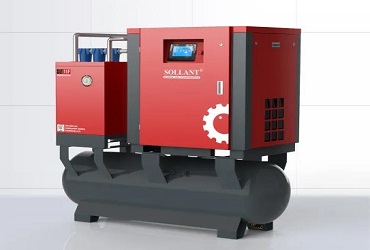

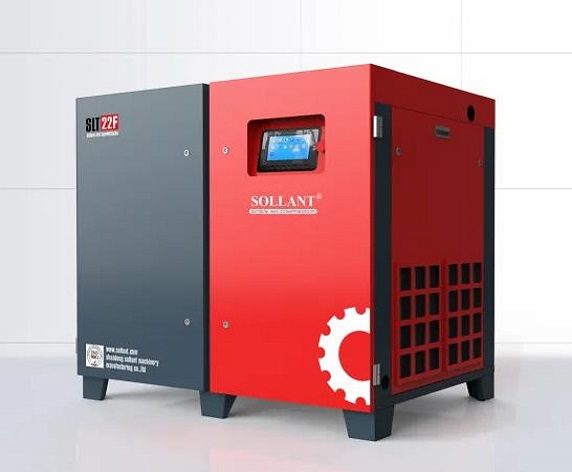

Zollant 22kw Fix Speed Rotary Screw Air Compressor structure of a unique design, a compact, stylish appearance, high efficiency, small energy consumption, low noise characteristics and long life, is a smart environment-friendly products. Widely applied in metallurgy, machinery, chemicals, and mining, and electric power industries of the ideal gas source equipment.
If you are looking for a manufacturer of Zollant 22kw Fix Speed Rotary Screw Air Compressor with Dryer and Tank in China, you are in the right place. Shandong Zollant machinery manufacturing Co., Ltd. is one of the most professional manufacturers and suppliers of Zollant 22kw Fix Speed Rotary Screw Air Compressor.
