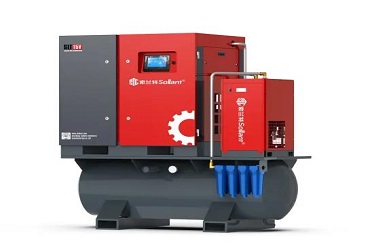

Screw Air Compressor with Dryer and Tank

Integrated design with beautiful appearance, fewer parts, and connectors reduce the possibility of unit failure and leakage; direct discharge of dry compressed air, fully guarantee the quality of user terminal gas; greatly save customer installation costs and use space.

  • Large, oversized rotors for low rotational speed
  • Best quality, Best price with short delivery time
  • New design – increased efficiency by 5-10%
  • Asymmetric rotor profile for increased sealing between rotors
  • Oil and air leak-free design
Description
Technical Data
More Details
Contact Us Now
Description
  • 1.Integrated design with beautiful appearance, fewer parts, and connectors reduce the possibility of unit failure and leakage; direct discharge of dry compressed air, fully guarantee the quality of user terminal gas; greatly save customer installation costs and use space.
  • 2.With new modular design structure, compact layout, ready to install and work.
  • 3.After strict testing of the unit, the vibration value of the unit is far lower than the international standard.
  • 4.The integrated and optimized pipeline design reduces the length and number of pipelines, thereby reducing the incidence of pipeline leakage and internal losses caused by the pipeline system.
  • 5.Adopting a freeze dryer with excellent performance, a compact rotary refrigeration compressor, and a high cooling capacity configuration scheme to ensure reliable operation under high-temperature conditions.
Technical Data
The parameter list of  4-in-1 machine
Rated power&
Pressure
FlowDimensionWeightAir outlet sizeVoltageAir tank capacity Oil contentNoise level at  1 meterTypeMotor and connecting way
kw-barm³/minmmKGGVLppmdb//
7.5kw/8bar/12bar0.81740*650*1460367G1380300≤352fixed speedseparated,IP55
7.5kw/8bar/12bar0.81740*650*1460367G1380300≤352PM VSDIntegrated,IP23
11kw/8bar/12bar1.11740*650*1460367G1380300≤352fixed speedseparated,IP23
11kw/8bar/12bar1.11740*650*1460367G1380300≤352PM VSDIntegrated,IP23
15kw/8bar2.21840*740*1730510G1380400≤355fixed speedseparated,IP23
15kw/8bar2.21840*740*1730510G1380400≤355PM VSDIntegrated,IP23
15kw/16bar1.51840*740*1730510G1380400≤355fixed speedseparated,IP23
15kw/16bar1.51840*740*1730510G1380400≤355PM VSDseparated,IP55
15kw/8bar2.21840*740*1730510G1380400≤355fixed speedseparated,IP55
15kw/16bar1.51840*740*1730510G1380400≤355fixed speedseparated,IP55
More Details

1.Reliability. Continuous testing for many years can ensure the absolute reliability of compressors. And we used German Schneider air compressor parts and Chinese famous brand accessories, such as Hanbell air end, Jiangtian motor, Inovance converter. We hope to provide the best solution for your business.

2.Energy-saving. The sollant screw air compressors are excellent all-in-one solutions for small and medium workshops, with energy cost savings of 30% - 35%.

3.High efficiency Compared with other manufacturers in the production of ordinary frequency conversion machines, our air compressor can save about 6%-7% energy. In the air compressor life cycle, the total costs are composed of the cost of purchase maintenance and energy. A frequency conversion control system can reduce energy consumption, thus reduce the total cost of air compressors.

4.New change Adopting the new concept of frequency conversion air compressor to achieve the highest energy-saving effect in this industry. More compact design, more closed body, less noise, low vibration, much more stable performance leading the future direction of the air compressor, establishment the industry standards to provide customers with the value of energy.
