High Pressure Towable Air Compressor China Manufacturers

Description

Technical Data

More Details

Description

Quick Details

Applicable Industries:: Manufacturing Plant, Construction works , Energy & Mining

Showroom Location:: Philippines, Mexico, Russia

Condition:: New

Type:: Screw

Configuration:: PORTABLE

Power Source:: Diesel

Lubrication Style:: Lubricated

Mute:: Yes

Place of Origin:: Shanghai, China

Brand Name:: Sollant

Model Number:: SLTDP-70

Voltage:: Customers' Requirements

Dimension(L*W*H):: 2400*1800*1800

Weight:: 1.4T

Warranty:: 1 Year

Working Pressure:: 8 bar

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Marketing Type:: New Product 2021

Warranty of core components:: 2 years

Core Components:: PLC, Other, Bearing

Gas Type:: Air

After Warranty Service:: Video technical support

Local Service Location:: Philippines, Mexico, Russia

After-sales Service Provided:: Online support

Certification:: CE & ISO

Supply Ability

Supply Ability: 3000 Set/Sets per Month

Packaging & Delivery

Packaging Details: Wooden Package

Port: Qingdao/Shanghai

Picture Example:

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	15	To be negotiated

Product Description

Technical Data

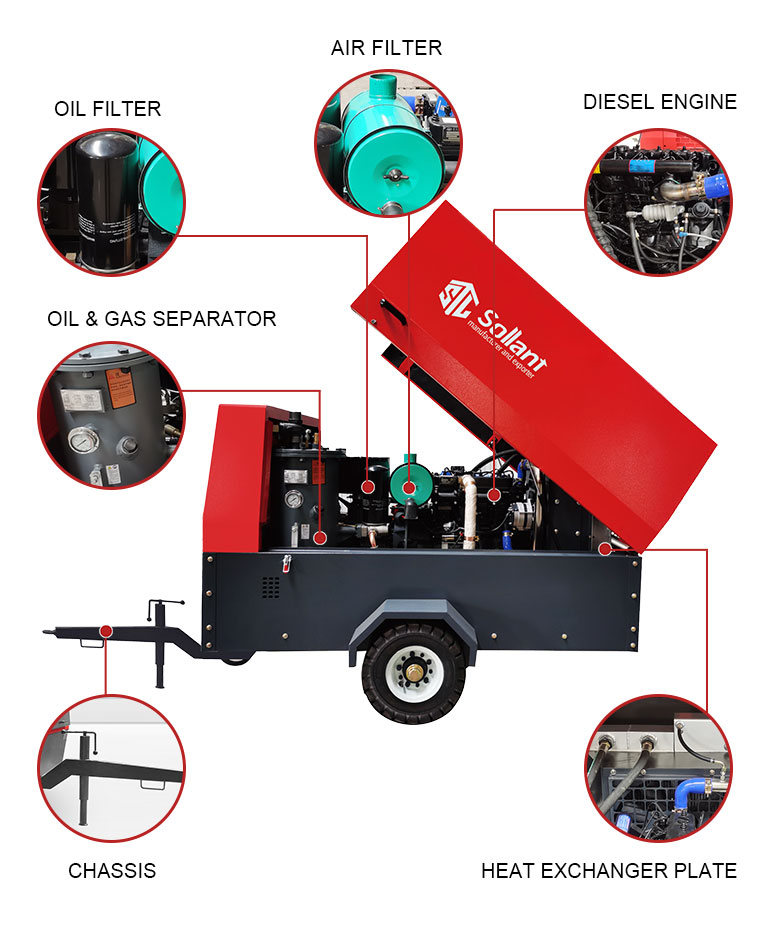

FEATURES OF DIESEL PORTABLE SCREW AIR COMPRESSOR

1. Main engine: the main engine and the diesel engine are directly connected through a high elastic coupling with the large diameter rotor design of the third generation 5:6, and there is no increasing gear in the middle. The speed of the main engine is the same as that of the diesel engine and the transmission effectis achieved Higher rate, better reliability, longerlife.

2. Diesel engine: the choice of domestic and foreign famous brand diesel engines such as cummins and yuchai meets the national II emission standards, with strong power and low fuel consumption.Perfect service.

3. The air volume control system is simple and reliable, according to the size of the air consumption, the air intake of
0~100% automatic adjustment, at the same time, automatic adjustment of the diesel engine throttle, maximum diesel saving.

4. Microcomputer intelligent monitoring air compressor exhaust pressure, exhaust temperature, diesel engine speed, oil
pressure, water temperature, oil tank level and other operating parameters, with automatic alarm and shutdown protection function.

5. Multi-stage air filter, suitable for dust environment;Multistage fuel filter, suitable for domestic oil quality status;Super large oil-water cooler, suitable for high temperature, especially high altitude and other harsh environment.

6. Humanized design, need to maintain the parts within the range of maintenance, maintenance of air filter, oil filter, fuel
tank, battery and oil cooler, easy and convenient, reduce the downtime.

Model	SLTDP-70
Air Delivery	10 m3/min
Working Pressure	8 bar
Power	74kw
Rotating Speed	2200 rpm
Diesel Tank Volume	90 L
Engine Oil Volume	7 L
Coolant Capacity	15 L
Noise	<96 dB(A)
Oil Content	<=3ppm
Weight	1.4 T
Dimension	*240018001800 mm*
Outlet Pipe Diameter	G1-1/2''

More Details

Shanghai Sollant Energy Saving Technology Co., Ltd. is located in Jiading disrtrict Shanghai City which is China's logistics
capital with great transportation convenience. Sollant is a comprehensive screw air compressor manufacturer that engaged in R & D,design, production and sales. It has a plant of 10,000 square meters, including a large production workshop, a comprehensivefirst-class exhibition hall and a testing laboratory.

Sollant has excellent mechanical engineering designers, an experienced staff team and a professional management team. The production concept focuses on energy-saving and is committed to perfecting and improving the technological process in order to get the core technology of super frequency energy-saving, achieving the characteristics of mute, durability, power saving and safety.

The company has 9 series of products with multiple models. Including Fixed speed air compressor, PM VSD air compressor, PM VSD two-stage air compressor, 4-in-1 air compressor, Diesel portable screw air compressor, Electric portable screw air compressor, Air dryer, Adsorption machine and the matching spare parts. Sollant adheres to the business philosophy of cooperation and mutual benefit to provide a one-stop service for every customer!

Q1: Are you a factory or trade company?
A1: We are an integration of industry and trade. The factory and international trade department are in the same place.

Q2: What the exact address of your company?
A2: C109, No.215, Songri Center, Beihongqiao, Jiading District, Shanghai, China

Q3: Warranty terms of your machine?
A3:24 months for the whole machine, 36 months for air end, technical support for life.

Q4: How long is your delivery?
A4: 25-30 days after receiving your 30% down payment.

Q5: Terms of payment?
A5: T/T and L/C at sight.

Q6: What is the MOQ?
A6: 1 PC.

Q7: Can you accept OEM orders?
A7: Yes, with a professional design team, OEM orders are highly welcome.

Q8: Can you accept color customization?
A8: Yes we can.

Q9: Will you provide some spare parts for the air compressor?
A9: Yes, of course.

Q10: What's your factory's production capacity?
A10: About 1000 units per month.Thank you.
